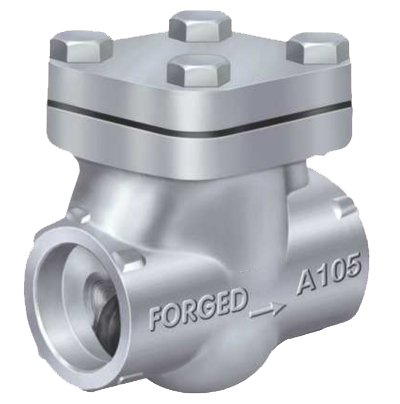

| Size | 1/4” (6 mm) to 2” (50 mm) |
|---|---|
| Class | 800# / 1500# / 2500# |
| End | Threaded / Socket Weld / Butt Weld Ends |
| Design | API-602 / BS 5352 / B 16.11 / B 16.25 |
| Features | Bolted / Welded Bonnet |
| *Special Material & Higher Size/Class Valves also available on request | |
| SIZE | L | H | SCR. ENDS | SW. ENDS | |||
| OD | |||||||
| ØC | E | Max. | Min. | F(Min.) | |||
| 15 | 85 | 55 | 1/2″ | 13.56 | 22.22 | 21.72 | 9.65 |
| 20 | 92 | 60 | 3/4″ | 13.87 | 27.56 | 27.05 | 12.7 |
| 25 | 105 | 72 | 1″ | 17.35 | 34.29 | 33.78 | 12.7 |
| 40 | 127 | 95 | 1.1/2″ | 18.38 | 49.15 | 48.64 | 12.7 |
| 50 | 140 | 100 | 2″ | 19.23 | 61.62 | 61.11 | 15.75 |
