| Size | 2” (50 mm) to 16” (400 mm) |
|---|---|
| Class | 150# / 300# / 600# / 900# / 1500# |
| End | Flanged End to ASME B16.5 RF / Butt Weld Ends to ASME B16.25 |
| Design | BS 1873 |
| Face to face | ASME B 16.10 |
| Inspection & Testing Std. | API 598 / BSEN 12266 PI |
| *Special Material & Higher Size/Class Valves also available on request | |

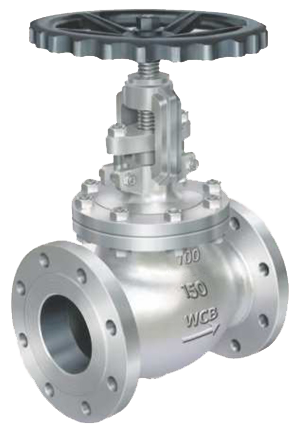

Globe Valve
| SIZE | PORT | L | L1 | H | H1 | ØWh | OD | b | Øg | f | ØJ | N | K:PCD |
| 50 | 51 | 203 | 203 | 270 | 290 | 200 | 150 | 16.3 | 92.1 | 2.0 | 19.1 | 4 | 120.7 |
| 65 | 64 | 216 | 216 | 298 | 320 | 250 | 180 | 17.9 | 104.8 | 2.0 | 19.1 | 4 | 139.7 |
| 80 | 76 | 241 | 241 | 318 | 343 | 250 | 190 | 19.5 | 127.0 | 2.0 | 19.1 | 4 | 152.4 |
| 100 | 102 | 292 | 292 | 378 | 410 | 300 | 230 | 24.3 | 157.2 | 2.0 | 19.1 | 8 | 190.5 |
| 125 | 127 | 356 | 356 | 390 | 430 | 350 | 255 | 24.3 | 185.7 | 2.0 | 22.2 | 8 | 215.9 |
| 150 | 152 | 406 | 406 | 435 | 480 | 400 | 280 | 25.9 | 215.9 | 2.0 | 22.2 | 8 | 241.3 |
| 200 | 203 | 495 | 495 | 523 | 582 | 500 | 345 | 29.0 | 269.9 | 2.0 | 22.2 | 8 | 298.5 |
| 250 | 254 | 622 | 622 | 627 | 700 | 500 | 405 | 30.6 | 323.8 | 2.0 | 25.4 | 12 | 362.0 |
| 300 | 305 | 698 | 698 | 740 | 825 | 600 | 485 | 32.2 | 381.0 | 2.0 | 25.4 | 12 | 431.8 |
| SIZE | PORT | L | L1 | ØD | b | Og (RFD) | f | 0j | N | K:Pcd. |
| 350 | 337 | 787 | 787 | 535 | 35.4 | 412.8 | 2.0 | 28.6 | 12 | 476.3 |
| 400 | 387 | 914 | 914 | 595 | 37.0 | 469.9 | 2.0 | 28.6 | 16 | 539.8 |
